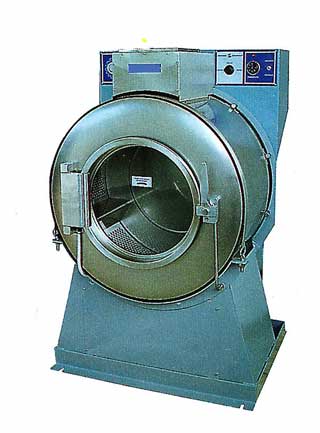

Washing machine C7 AI

Automatic washing machines completely surrounding machine body,fully made of stainless steel,electric and steam version
Capacity kg 8-10
Height mm 1060
Width mm 710
Depth mm 650
Weight kg 164
Cage diameter mm 560x330
Extraction speed n/min 450
Filling capacity l 32
Electric power Kw 6

codice: 3

Drycleaning machine BOWE P 12

Solvent perchlorethylene
Cage
Loading capacity kg 12
Cage volume l 240
Cage diameter mm 820
Cage depth mm 460
Cleaning speed rpm 40
Extraction speed rpm 375/400
Tank/filling capacity/
Tank 1 l 120
Tank 2 l 80
Tank 3/Option/ l 100
Still
Total volume 1 160
Filling volume l 120
Extraction filter
Filter surface mq 2,4
Filter volume l 40
Machine measurements
Width/slim/cross/ mm 1.080/1.840
Width entry measurement mm 955
Depth/slim/cross/ mm 2.165/1.390
Height entry measur. mm 1.995
Height installed mm 2.010/2.260
Weight
Without solvent kg 980/1.080
Floorsurface mq 2,3/2,5
Floor load
Static and dynamic N/mq 13.600/14.300

codice: 1

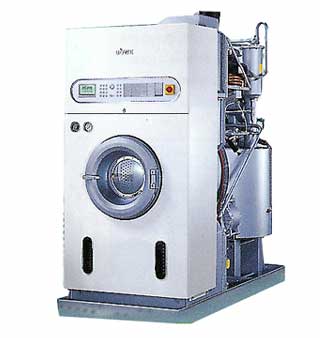

drycleaning BOWE P 15

Solvent perchlorethylene
Cage
Loading capacity kg 15
Cage volume l 300
Cage diameter mm 820
Cage depth mm 570
Cleaning speed rpm 40
Extraction speed rpm 375/400
Tank/filling capacity/
Tank 1 l 145
Tank 2 l 95
Tank 3/Option/ l 100
Still
Total volume 1 160
Filling volume l 120
Extraction filter
Filter surface mq 2,4
Filter volume l 40
Machine measurements
Width/slim/cross/ mm 1.080/1.840
Width entry measurement mm 955
Depth/slim/cross/ mm 2.165/1.390
Height entry measur. mm 1.995
Height installed mm 2.010/2.260
Weight
Without solvent kg 1.080/1.180
Floorsurface mq 2,3/2,5
Floor load
Static and dynamic N/mq 14.500/15.200

codice: 2

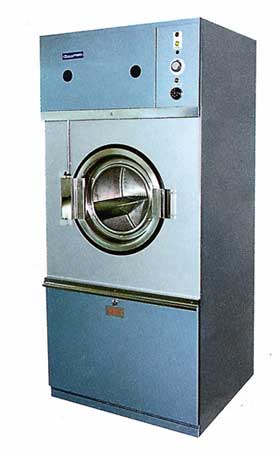

Tumbler E 12

Height mm 1650
Width mm 715
Depth mm 1070
Weight kg 194
Cage diameter mm 680x625

codice: 5

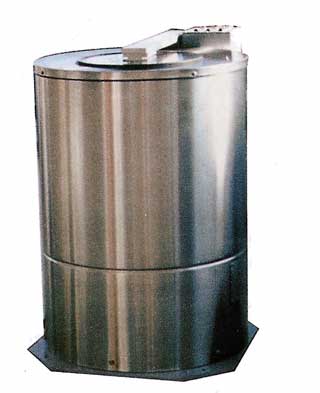

Hydroextractor centrifuge J8

Capacity kg 8
Height mm 750
Width mm 550
Depth mm 790
Weight kg 120
Basket diameter mm 400 x 300
Revs extract n/m' 1450
Brake electric

codice: 6

Hydroextractor centrifuge J15

Capacity kg 14
Height mm 900
Width mm 670
Depth mm 860
Weight kg 180
Basket diameter mm 490 x 300
Revs extract n/m' 1450
Brake electric

codice: 7

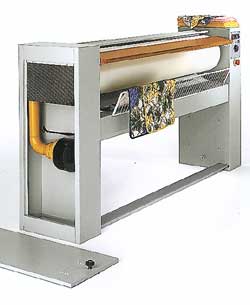

ironers rotary GMP 1600

These models represent the basis of the professional rotary ironers range with a roller.
Technical data.
Roller dimensions O 300 x 1600 m
Roller speed 2,7 - 4,3 m/min
Connections V.230/3 + N/50Hz
V.400/3 +N/50 Hz
Heating power 11,4 kW
Total power 12,32 kW
Output 50 kg
Ironer dimensions 2090 x 552 x 1073 mm
Net weight 221 kg

codice: 9

ironers rotary GMP 2000

These models represent the basis of the professional rotary ironers range with a roller
Technical data
Roller dimensions O 300
Roller speed

codice: 10

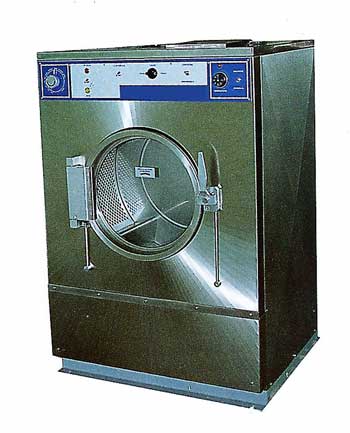

Washing machine C 15 s.a./s.m.

Loading capacity kg 14-15
Width mm 840
Depth mm 770
Height mm 1280
Cage diameter mm 680x385
Extraction speed mm 380
Filling capacity mm 56
Electric power Kw 6

codice: 4
